Extreme Engineering: Revealing the Design Secrets of Deep-Sea Microbes
The archaeon Pyrodictium abyssi lives at the edge of life’s limits. Found in deep-sea hydrothermal vents where temperatures exceed the boiling point of water, this extremophile thrives without light or oxygen and under immense pressure hundreds to thousands of meters below the surface. Its cells are interconnected by a network of protein tubes called cannulae, forming a remarkably stable microbial community. Researchers had long wondered how these single-celled organisms achieve such intricate, cooperative architecture—until now.
Using cutting-edge microscopy, scientists have uncovered new details about the cannulae’s elegant construction and the surprisingly straightforward process that builds them. The study, published in Nature Communications, is led by teams from Emory University and the University of Virginia, Charlottesville, with contributions from Vrije Universiteit Brussel in Belgium.
The findings could spark innovations in biotechnology, including the creation of smart materials and nanoscale drug-delivery systems.
Noting the cannulae’s resilience under extreme conditions, Vincent Conticello, Emory’s chemistry professor and co-senior author, describes them as both strong and beautiful. He compares their fluted, regular profiles to classical columns from ancient Greece or Rome, highlighting the precise, architectural regularity of the structures.
The team demonstrated that calcium ions prompt specific strands on the cannulae-forming protein molecules to bind sequentially, leading to self-assembly into the complex tubes. “The simplicity of this assembly process was genuinely astonishing,” Conticello remarks.
Beyond structure, the study provides clues about the cannulae’s possible role as a transportation network inside the microbial community—carrying information and cargo. It also adds to the evidence that Pyrodictium abyssi might exemplify early steps in the evolution of multicellular life from Earth’s distant past.
“Pyrodictium abyssi consistently forms these cannulae,” Conticello explains. “Such a capability to exchange materials could have given the whole community a survival advantage in extreme environments.”
Key contributors include co-first authors Jessalyn Miller (Emory PhD student, now at the New York Structural Biology Center), Mike Steutel (Vrije Universiteit Brussel), and Ravi Sonani (University of Virginia), with Emory graduate student Andres Gonzalez Socorro as a co-author. Co-senior authors are Han Remaut (Vrije Universiteit Brussel) and Edward Egelman (University of Virginia). Additional collaborators hail from the University of Lethbridge (Canada) and the Max Planck Institute (Tübingen, Germany).
Extremophiles—microorganisms that endure Earth’s harshest conditions—were first identified in Yellowstone’s near-boiling springs in 1969. Since then, nature’s bio-prospectors have found these hardy life forms in acidic deep mines, icy environments, and the world’s deepest oceans. Among them are members of Archaea, a domain distinct from Bacteria and Eukarya, representing a separate evolutionary branch.
Archaea are more than just inhabitants of extremity. They form parts of the microbiomes of many organisms, including humans, where they reside in the gut, mouth, and skin. Although once misclassified as bacteria, archaea were recognized as a distinct lineage in 1977 when genetic analyses revealed their unique evolutionary path.
Pyrodictium abyssi—named from Greek roots meaning fire, network, and abyss—was first isolated from sea vents in 1991 by German microbiologist Karl Stetter.
Scientists are examining diverse Archaea to identify enzymes capable of functioning under extreme conditions. Such enzymes could enable bioengineered tools for a broad range of applications.
The Conticello lab focuses on designing proteins for biomedicine and other sophisticated technologies.
A closer look at cannulae was made possible by cryo-electron microscopy (cryo-EM), a technology that, over the past decade, has dramatically increased resolution. This advance allows researchers to capture near-atomic details of proteins and other biomolecules, which can then be compiled into stop-motion-style sequences showing dynamic processes.
“Earlier cryo-EM resolutions didn’t reveal the fine features of individual molecules,” Conticello notes. “Now we can observe proteins and their interactions with unprecedented clarity.”
Advances in artificial intelligence over the past five years have further accelerated insights into protein structure. In particular, AlphaFold, an AI system from DeepMind, can predict protein configurations from genetic sequences with remarkable speed and accuracy.
Crucially, Conticello invokes a principle from Francis Crick: to understand function, study structure. Just as DNA’s twisted ladder shape determines its role, a protein’s architecture largely governs its activity.
Studying Pyridictium abyssi in its natural high-pressure, oxygen-free habitat is challenging. The organism also requires hydrogen gas for growth and emits hydrogen sulfide, a corrosive and toxic substance. To obtain detailed structural information without relying on live Pyrodictium abyssi, the Conticello team synthesized the cannulae protein from its DNA sequence and produced it in E. coli, which reads the gene and manufactures the protein.

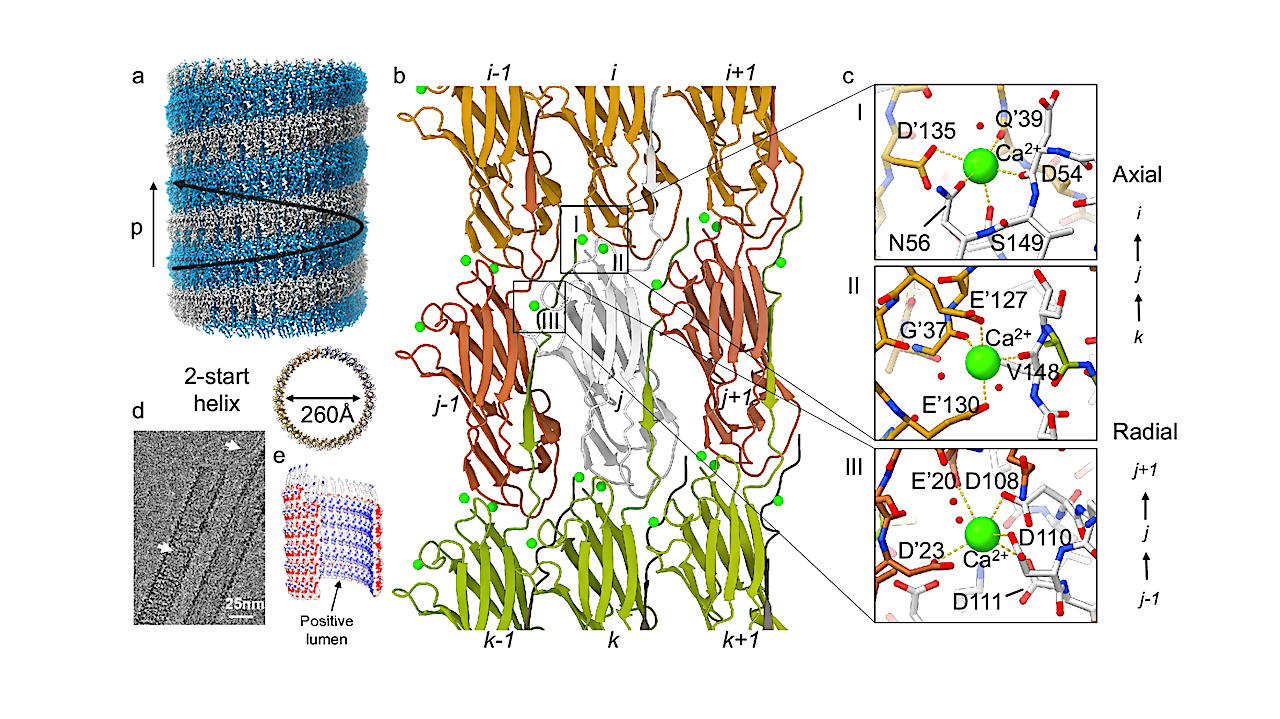

In collaboration with the University of Virginia, the Emory team achieved the most detailed views yet of the cannulae using high-resolution cryo-EM, while also analyzing how the protein grows into the final hollow tubes.
They found that calcium ions trigger a domino-like sequence: one protein strand binds to the next, and so on, constructing the tube in a highly organized fashion. The calcium acts like a mortar, stabilizing the structure as it forms.
The discovery that such a strong, well-ordered assembly can occur through a simple chemical cue—calcium addition—without cellular machinery like cilia or flagella is striking. The elegance of this process, with a complex end product emerging from a straightforward trigger, inspires researchers.
The synthesized cannulae structures were submitted to the Protein Data Bank, a public repository of more than 200,000 protein structures that accelerates scientific discovery. The public availability allowed Vrije Universiteit Brussel researchers to compare lab-grown cannulae with those extracted from biological samples, validating that the designs match. This parity opens the door to practical, scalable studies and potential industrial applications.
Looking ahead, the team is exploring cannulae as programmable, protein-based biomaterials. Analyses of cannulae derived from biological material revealed hints of a helix-shaped cargo inside, suggesting the transported material could be DNA, though further verification is needed due to limited sample. The interior of the cannulae is positively charged, which would be compatible with carrying negatively charged cargo like DNA. The researchers are investigating encapsulating various cargos inside synthetic cannulae by leveraging this charge relationship.
Remarkably, the team has already demonstrated the ability to trap negatively charged gold nanoparticles inside the cannulae’s positively charged interior, highlighting potential biomedical uses in drug delivery and diagnostic imaging.
Funding for this work came from the National Science Foundation, the National Institutes of Health, Research Foundation-Flanders, and the Human Frontier Science Program.
Story by Carol Clark.
Source: Donor strand complementation and calcium ion coordination drive the chaperone-free polymerization of archaeal cannulae. Nature Communications (open access).
